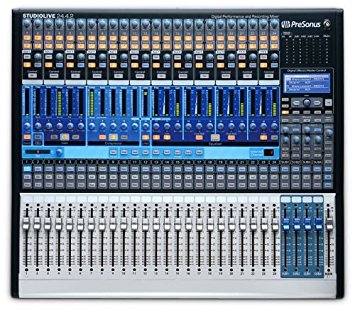

Presonus SL24.4.2 Live Sound Mixer Rental

$200.00

Category: Tag:
CALL US
TEXT US
BOOK NOW

Description

Windows

  • Windows® Vista x64/x86 SP2, Windows 7 x64/x86 SP1, Windows 8 x64/x86
  • Intel® Core™ Duo or AMD Athlon™ X2 processor (Intel Core 2 Duo or AMD Athlon X4 or better recommended)
  • 2 GB RAM (4 GB or more recommended)

Mac

  • Mac® OS X 10.6.8 or later
  • Intel Core Duo processor (Intel Core 2 Duo or Core i3 or better recommended)
  • 2 GB RAM (4 GB or more recommended)

Windows and Mac Systems

  • PreSonus Universal Control 1.5.3 or later
  • IEEE 1394 FireWire 400 Port
  • Internet connection recommended
  • DVD-ROM drive
  • Internal or external 7200 RPM storage drive highly recommended
  • Monitor with 1024×768 resolution



Microphone Preamp 1-24 (XLR Balanced)
Type XLR Female, Balanced
Frequency Response to Direct Output 20 Hz to 40 kHz ±0.5 dBu
Frequency Response to Main Output 20 Hz to 20 kHz ±0.5 dBu
Input Impedance (Balanced) 1 kΩ
THD to Direct Output < 0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output -97 dB
S/N Ratio to Main Output -94 dB
Common Mode Rejection Ratio +65 dB
Gain Control Range -16 dB to +67 dB (± 1 dB)
Maximum Input Level (unity gain) +16 dBu
Phantom Power +48 VDC



Line Inputs
Type ¼” TRS Female, balanced mono
Frequency Response to Direct Outputs 10-40 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs 20-20 kHz, ±0.5 dBu
Input Impedance 10 kΩ
THD to Direct Output <0.0007%, +4 dBu, 20-20 kHz, unity gain, unwtd
THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output -105 dB
S/N Ratio to Main Output -94 dB
Gain Control Range (±1 dB) -20 dB to +20 dB
Maximum Input level (unity gain) +22 dBu



Tape Inputs
Type ¼” TRS Female, balanced mono
Maximum Input Level +10 dBu



Auxiliary Inputs
Type ¼” TRS Female, balanced (2 stereo pairs)
Maximum Input Level +22 dBu



Main Outputs
Type Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair); XLR Male, balanced  (mono)
Rated Output Level +24 dBu
Output Impedance 100Ω



Aux Outputs
Type ¼” TRS Female, balanced (mono)
Rated Output Level +18 dBu
Output Impedance 100Ω



Subgroup Outputs
Type ¼” TRS Female, balanced (mono)
Rated Output Level +18 dBu
Output Impedance 100Ω



Tape Outputs
Type RCA Female, unbalanced (stereo pair)
Rated Output Level +18 dBu
Output Impedance 100Ω



Control Room Outputs
Type ¼” TRS Female, balanced (stereo pair)
Rated Output Level +18 dBu
Output Impedance 100Ω



System Crosstalk
Input to Output -90 dBu
Adjacent Channels -87 dBu



Noise Gate / Expander
Threshold Range -84 dB to 0 dB
Attack Time 0.5 ms
Release Time 0.05s to 2s
Expander Attenuation Range 2:1
Gate Attenuation Range ∞
Key Listen Filter 2nd-order resonant bandpass; Q=0.7; OFF, 40 Hz-16 kHz



Limiter
Threshold -28 dBFS
Ratio ∞:1
Attack 20 ns
Hold 10 ms
Release 20 ms



Compressor
Threshold Range -56 dB to 0 dB
Ratio 1:1 to 14:1
Attack Time 0.2 ms to 150 ms
Release Time 40 ms to 1000 ms
Auto Attack and Release Attack = 10 ms, Release = 150 ms
Curve Types hard and soft knee



EQ
Type 2nd-order shelving filter (Q = 0.55)
Low (Lowpass or Bandpass) 36 to 465 Hz, ±15 dB
Low Mid 90 Hz to 1.2 kHz, ±15 dB
High Mid 380 Hz to 5 kHz, ±15 dB
High (Highpass or Bandpass) 1.4 kHz to 18 kHz, ±15 dB
Q 0.1 – 4



Digital Audio
ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
FireWire S400, 400 Mb/s
Internal Processing 32-bit, floating point
Sampling Rate 44.1, 48 kHz
A/D/A Bit Depth 24
Reference Level for 0 dBFS +18 dBu



Clock
Jitter <20 ps rms (20 Hz – 20 kHz)
Jitter Attenuation >60 dB (1 ns in ≈ 1 ps out)



Power/Environmental
Connector IEC
Input-Voltage Range 100 to 240V, 50-60 Hz
Power Requirements (continuous) 100W
Temperature Range 0-40 degrees Celsius



Physical
Length 21.31 inches (541.27 mm)
Width (chassis only) 25.19 inches (639.80 mm)
Maximum Height 7.02 inches (178.21 mm)
Weight 30 lbs.
